American LandMaster L7XL PRO - 4X4
|Model:||L7XL PRO - 4X4|
|Type:||Utility / Side-by-Side|
PDFs / Files
Request More Info
American LandMaster L7XL PRO - 4X4
Please enter your contact information and one of our representatives will get back to you with more information.
The L7xl PRO comes built with our most powerful and dependable 694cc EFI commercial-grade engine. This engine is specifically tuned to give you more torque than the rest of the Landmaster lineup. This mean bigger jobs, heavier towing, and more power. Standard, the L7xl Pro comes with our heavy duty LROSS (suspension system), power steering, heavy duty bumper, and an automatic bed lift powering a 50" x 70.5" extra large steel bed. The XL bed also transforms into a flat bed by easily removing the bolts. This makes for a great way to quickly take on and off heavy loads.
The L7xl Pro provides an outstanding ride experience that is attributed to our unique L-ROSS (Landmaster Ride Optimization System). The L-ROSS works seamlessly together to provide the ultimate SUV-like ride and drive experience. The L7xl Pro, fully loaded can travel over large bumps, rocks, uneven terrain and small barriers without compromising your overall ride experience.
The L7xl Pro is the ideal UTV for big jobs on the farm, construction sites, industrial plants, lumber yards, or even the hunter wanting to bring back some big game. Geared for more torque and larger loads, this is the ultimate heavy duty UTV.
POWER 21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
SPEED Up to 24 mph
FUEL CONSUMPTION Up to 28 mpg
RANGE Up to 100 miles
STARTING 12V keyed ignition with recoil backup
BATTERY 12V / 360 cca utility class
SPARK PLUG NGK C7HSA
FUEL CAPACITY 5.0 gal
ALTERNATOR 25 amp
TRANSMISSION CVT automatic - Geared for high torque output
TRANSAXLE Gear drive Schafer/DANA oil-filled transaxle
DIFFERENTIAL Cable Actuated Rear-Locking
DRIVE Switch engaged on demand, 4 wheel drive
FRONT SUSPENSION Heavy Duty - Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION Heavy Duty - Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM 4 wheel disk, hydraulic brake. Trans-axle mounted rotor with mechanical caliper parking brake with indicator light.
TIRES 25 x 10 - 12 (front) 25 x 10 - 12 (rear)
DIMENSIONS 127'' L x 59'' W x 76'' H
WHEEL BASE 105''
TURNING RADIUS 16' inside radius
CURB WEIGHT 1625 Lbs.
BED MATERIAL Steel
BED DIMENSIONS 14.25"h x 50.25" w x 70" L (inside bed dimensions)
GROUND CLEARANCE 11"
BED CAPACITY 1000 Lbs. - 21 cubic feet
TOWING CAPACITY 1750 lbs.
TOTAL PAYLOAD 1,400Lbs
American LandMaster Landstar 677 EFI Base 4WD View Details
American LandMaster Landstar 350 DL Camo 2WD View Details
American LandMaster Landstar 350 DL Base 2WD View Details
American LandMaster Landstar 677 EPS Camo 4WD View Details
American LandMaster L4 - 4X2 View Details
American LandMaster EV - 4X2 View Details
American LandMaster Landstar Crew4X EFI Camo View Details
American LandMaster Landstar 677 EPS Base 4WD View Details
American LandMaster Landstar 455 EFI Base 2WD View Details
American LandMaster Landstar Crew4X EFI Base View Details
American LandMaster Landstar 550 Camo 4WD View Details
American LandMaster L3 - 4X2 View Details

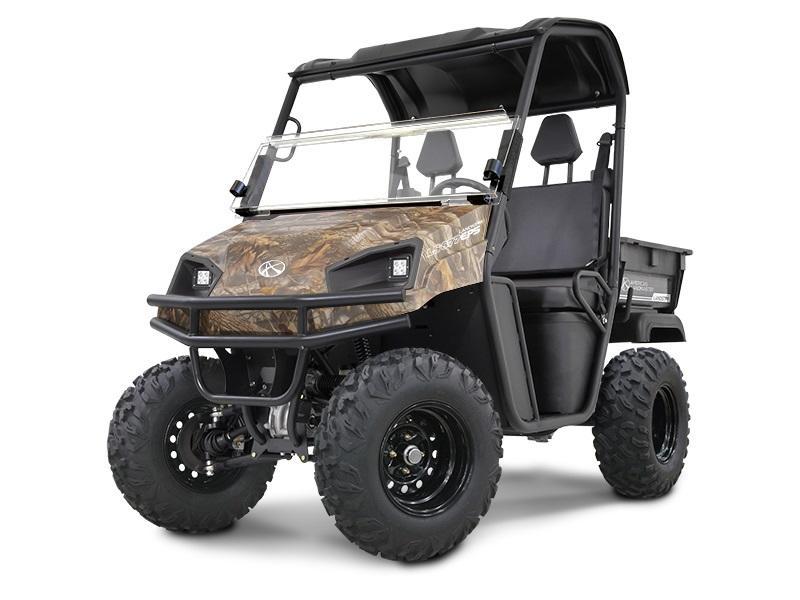

American LandMaster Landstar 677 EFI Camo 4WD View Details
