American LandMaster L7X - 4X4
|Model:||L7X - 4X4|
|Type:||Utility / Side-by-Side|
PDFs / Files
Request More Info
American LandMaster L7X - 4X4
Please enter your contact information and one of our representatives will get back to you with more information.
The L7x comes built with our most powerful 694cc EFI commercial-grade engine, and includes power steering as a standard feature. The superior ride and comfort is attributed to our unique L-ROSS (Landmaster Ride Optimization System). The L-ROSS works seamlessly together to provide the ultimate SUV-like ride and drive experience. Travel over bumps, hills, uneven terrain, and muddy bogs smoother than ever.
Our crew model now travels up to 35mph to get you from point A. to B. quickly and smoothly.
The L7x is the ideal UTV for frequent hauling of passengers, hunters, large manufacturing facilities, municipalities, police, fire, or just a fun vehicle to haul around friends. Customize the L7 the way you want and to fit your lifestyle with our new Plug N' Play electrical system. Built for reliability, functionality, and ease of installation.
POWER 21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
SPEED Up to 34 mph
FUEL CONSUMPTION Up to 28 mpg
RANGE Up to 100 miles
STARTING 12V keyed ignition with recoil backup
BATTERY 12V / 360 cca utility class
SPARK PLUG NGK C7HSA
FUEL CAPACITY 5.0 gal
ALTERNATOR 25 amp
TRANSMISSION CVT automatic
TRANSAXLE Gear drive Schafer/DANA oil-filled transaxle
DIFFERENTIAL Cable Actuated Rear-Locking
DRIVE Switch engaged on demand, 4 wheel drive
FRONT SUSPENSION Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM 4 wheel disk, hydraulic brake. Trans-axle mounted rotor with mechanical caliper parking brake with indicator light.
TIRES 25 x 8 - 12 (front) 25 x 10 - 12 (rear)
DIMENSIONS 127'' L x 59'' W x 76'' H
WHEEL BASE 105''
TURNING RADIUS 16' inside radius
CURB WEIGHT 1,525 lbs.
BED MATERIAL Structural foam "Poly Bed" with stake pockets
BED DIMENSIONS 35.25'' L x 41.5'' W x 11'' D
GROUND CLEARANCE 11"
BED CAPACITY Poly - 9 cu.ft. / Steel - 11 cu.ft. / L-ROSS - 600 lbs. / HD-LROSS - 800 lbs.
TOWING CAPACITY 1500 lbs.
TOTAL PAYLOAD L-ROSS - 1,000 lbs. / HD-LROSS - 1,200 lbs.
American LandMaster Landstar Crew2 Base View Details
American LandMaster Landstar 550 Base 4WD View Details
American LandMaster Landstar Crew4 Camo View Details

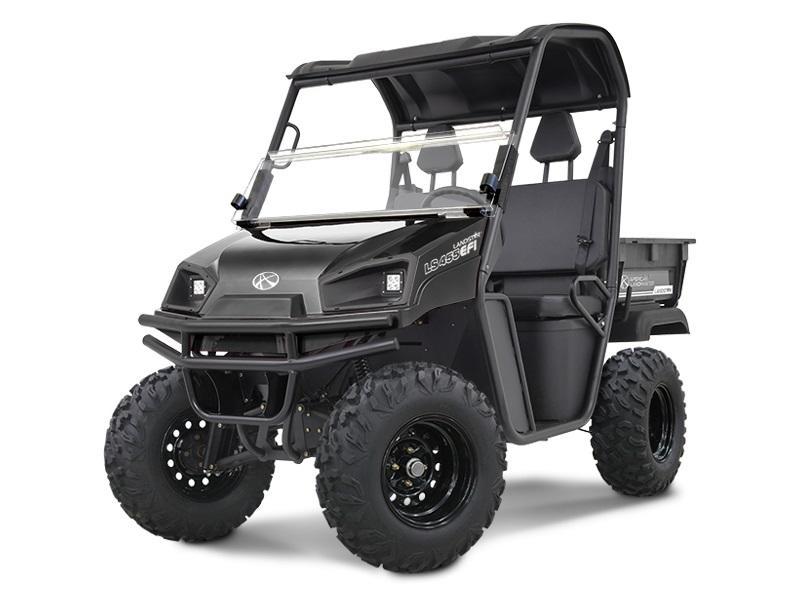

American LandMaster Landstar 455 EFI Base 2WD View Details
American LandMaster Landstar 677 EFI Camo 4WD View Details
American LandMaster L7XL PRO - 4X4 View Details
American LandMaster Landstar 550 DL Base 4WD View Details
American LandMaster Landstar 550 DL Camo 4WD View Details
American LandMaster L4 - 4X2 View Details
American LandMaster L3 - 4X2 View Details
American LandMaster Landstar 677 EPS Base 4WD View Details
American LandMaster Landstar Crew2 Camo View Details
American LandMaster Landstar 477V Base 2WD View Details
American LandMaster Landstar Crew4X EFI Camo View Details

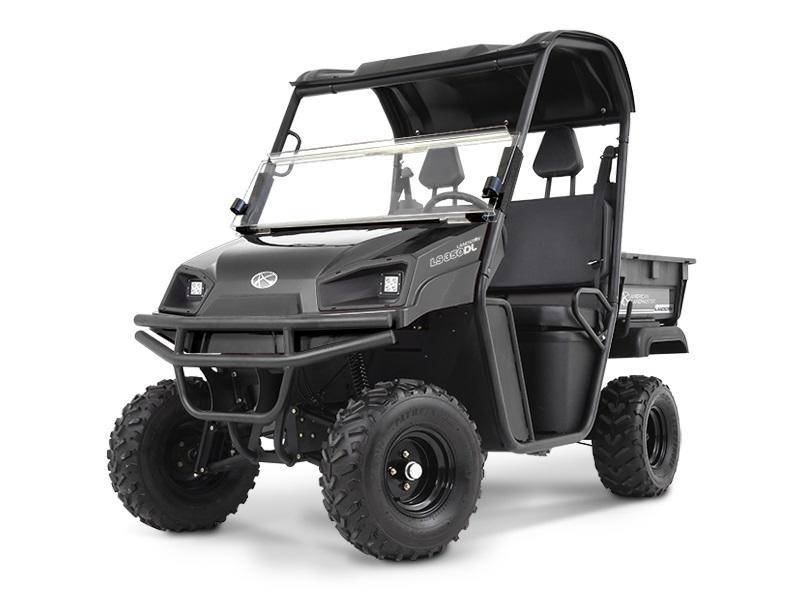

American LandMaster Landstar 350 DL Base 2WD View Details
